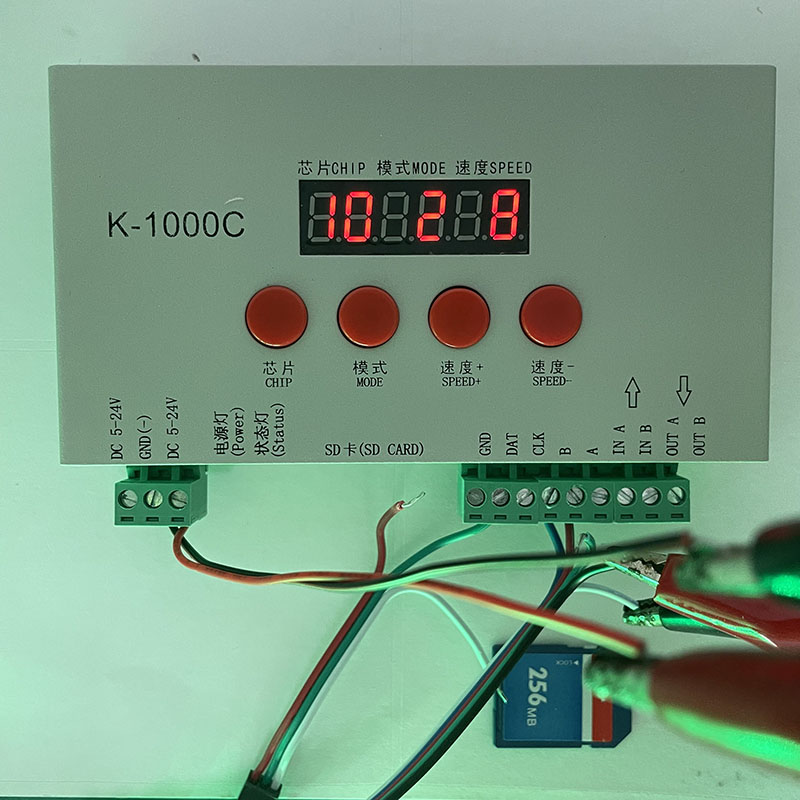

DMX address writer ,coder,pixel controller,DMX controller K-1000C

Product Features:
1.32 to 65536 degree Gray control, Gamma correction procession handle.
2.Support various point, line light source, and all kinds of rules and specific shaped handle.
3.The controller has one output port, can support up to 512/2048 pixels(DMX lighting support up to 512 pixels).
4.Play content stored in the SD card , the SD card can store up to 32 effects File(software LEDedit 2022), SD card capacity support 128MB-32GB.
5.The controller can single set alone use,also multiple controllers cascade,
cascade optical isolation mode: interference, better stability,
cascade distance between two controllers can reach up to 150 meters, need to use 0.5M pure copper power cord.
6.Great for DIY. K-1000C is a SD card DIY programmable led pixel controller.T-1000S latest upgrade version. You can edit any color
modes or animation you want.
7.If you need LedEdit 2022 software we can send it to your email .
8.The controller has one output port, can support up to 512/2048 pixels (DMX lighting support up to 512 pixels).

Notes:

1,  The controller load  512 points pixel, speed can reach up to 30 frames / sec, 1024 point pixel speed can reach up to 25 frames / sec, 2048 point pixel speed is about 15 frames / sec (the above parameter is an example of 1903 agreement IC, different IC have difference)

2.  International standard DMX512 (1990 agreement) maximum support 512 pixels. When the load is international standard 170 pixels, the speed can reach up to 30 frames / sec, 340 pixels speed is about 20frames / sec, when 512 pixels speed is about 12 frames / sec.

Remarks: 1. K-1000-RGBW should be selected for lamps with RGBW four channels.

For a single-channel lamp with a load, K-1000-W needs to be selected. At this time, a channel represents a pixel, and the software effect is white.
